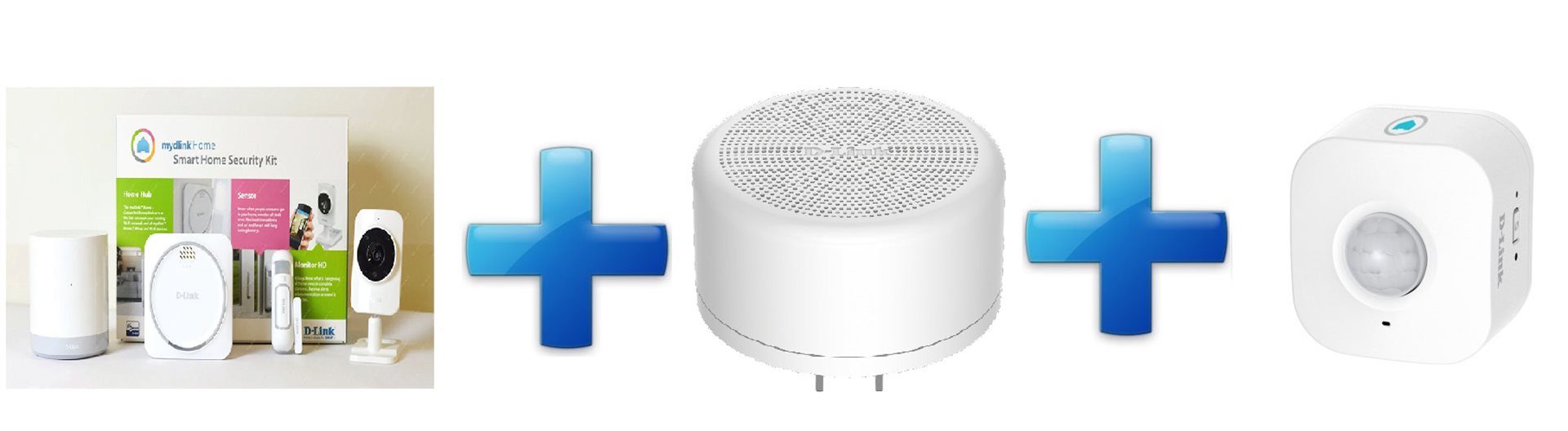

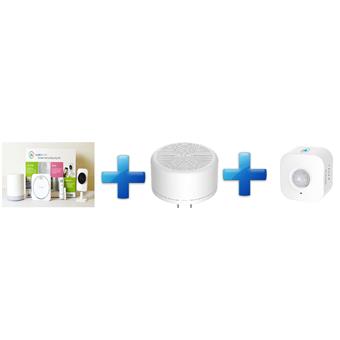

D-Link Bundle Home Security Starter Kit+Home Siren+Wi-Fi Motion Sensor

D-Link mydlink Home Security Starter Kit

Starter Kit package with simple setup process.

PŘEHLED

This convenient security bundle lets you protect and monitor your home from anywhere. The Smart Home Security Kit includes a Connected Home Hub a Door & Window Sensor, a Siren with optional battery back-up1 and a Monitor HD. These devices talk to each other and with the mydlink Home smartphone and tablet app1 you can decide what it is you would like them to do.

OBSAH BALENÍ

1 x DCH-G020 mydlink Home Z-Wave Connected Home Hub
1 x DCS-935L mydlink Home Monitor HD
1 x DCH-Z110 mydlink Home Z-Wave Door/ Window Sensor
1 x DCH-Z510 mydlink Home Z-Wave Siren
TECHNICKÁ SPECIFIKACE

Network Protocols

ARP, ICMP, TCP/IP, IPv4 and IPv6, HNAP, DHCP client, NTP client, Bonjour. 802.11b/g/n, Z-Wave v6.02 or above
Wireless

Z-Wave: 868.40 MHz
Wi-Fi: 2.4 GHz
AP mode
Ports

USB 2.0
2 x 10/100 Ethernet
Buttons

WPS & Z-Wave pairing / unpairing
Reset
LED

Status
Physical
Dimensions

100 x 100 x 110 mm
Weight

180 g
Power

5 V / 2 A
Temperature

Operating: 0 to 40 °C
Storage: -20 to 70 °C
Humidity

Operating: 20% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications

FCC, CE, Wi-Fi, Z-Wave Plus
Door & Window Sensor (DCH-Z110)
Network Protocols

Z-Wave v6.02 or above
Wireless

Z-Wave: 868.40 MHz
Buttons

Tamper switch & pairing/unpairing button
LED

Status
Physical
Dimensions

Sensor: 96 x 28 x 23 mm
Magnet: 50 x 10 x 12 mm
Weight

34.1 g
Power

Included 3 V battery (CR123A)
Temperature

Operating: -10 to 40 °C
Storage: -20 to 70 °C
Humidity

Operating: 20% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications

FCC, Z-Wave Plus
Siren with optional battery back-up (DCH-Z510)
Network Protocols

Z-Wave v6.02 or above
Wireless

Z-Wave: 868.40 MHz
Buttons

Tamper switch & pairing / unpairing / reset button
LED

Status
Siren

110 dB
6 available sounds
Physical
Dimensions

110 x 110 x 19 mm
Weight

125 g
Power

5 V / 1.2 A
Optional 1150 mAh lithium battery support (BL-5C)1
Temperature

Operating: -10 to 40 °C
Storage: -20 to 70 °C
Humidity

Operating: 20% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications

FCC, Z-Wave Plus
DCS-935L Monitor HD
Camera Hardware Profile

1/4” Megapixel progressive CMOS sensor
5 metre IR illumination distance
Minimum illumination: 0 lux with IR LEDs on
Built-in Infrared-Cut Removable (ICR) Filter module
4X digital zoom
Lens: Fixed length 2.38 mm
Aperture: F2.4
Angle of view:
(H) 78.44°
(V) 47.9°
(D) 85.98°
Minimum object distance: 434 mm
Exposure Time: 1/7.5 to 1/24,000 sec.
Built-in microphone
Image Features

Time stamp and text overlays
Configurable motion detection windows
Video Compression

Simultaneous H.264/MJPEG format compression
JPEG for still images
Video Resolution

1280 x 720 at frame rates up to 30 fps
Audio Compression

AAC
G.711
Connectivity

802.11b/g/n/ac wireless with WEP/WPA/WPA2 encryption
Advanced Features

Event Management
Motion detection
Sound detection
General
Dimensions

58.0 x 84.5 x 124.9 mm
Weight

160.0 g
Power

5 V DC 1.2 A, 50/60 Hz
Power Consumption

3.5 watts maximum
Temperature

Operating: 0 to 40 °C
Storage: -20 to 70°C
Humidity

Operating: 20% to 80% non-condensing
Storage: 20% to 80% non-condensing
Certifications

CE
CE LVD
FCC Class B
C-Tick

D-Link DCH-S220/E mydlink Home Siren

Wireless Siren to help keep your home safe
Easy Setup- One-piece wall-plug design is compact and does not require additional power cables
Alarm Volume: 80db, 90dB, 100dB
Alarm Types: Emergency, Fire, Ambulance, Police, Door Chime, Beep Beep
LEDs: Status and Warning
Wi-Fi Protected Setup (WPS)
Reset button
Wi-Fi Protected Access (WPA/WPA2)
Push notifications via the mydlink™ Home app
Scheduling
Two internal antennas
Push Notification
Input: 100 to 240 V AC, 50/60 Hz
Compatible with mydlink Home App
Functionality
Alarm Sounds
6 different built-in sounds:

Emergency
Fire
Ambulance
Police
Door Chime
Arm/Disarm
Alarm volume
Selectable volume via mobile app:
100 / 90 / 80 dB
Features
Sound alarm based on trigger from other mydlink compatible devices
Receive mobile push notification
Schedule alarm sound at certain times
Mobile app
mydlink® Home app for iPhone, iPad and Android smartphones and tablets
Requires iOS 7 or above or Android 4.0 or above
Compatible devices
Wi-Fi Motion Sensor (DCH-S150)
Wi-Fi Water Sensor (DCH-S160)
Wi-Fi Smart Plug (DSP-W110)
Wi-Fi Smart Plug (DSP-W215)
HD Wi-Fi Camera (DCS-935L)
General
Wireless

802.11n/g
Wireless Frequency Range

2.4GHz to 2.4835GHz
Maximum Operating Range

Within wireless coverage from existing Wi-Fi network
Antennas

Two internal antennas
LED

Status
Warning
Buttons

Wi-Fi Protected Setup (WPS)
Reset
Security

Wi-Fi Protected Access (WPA/WPA2)
Wi-Fi Protected Setup (WPS)
Minimum Requirements

Smartphone or tablet (iOS 7 or above; Android 4.0 or above)
Router with Wi-Fi and internet connection
One available power outlet (125V AC)
Physical
Indoor or Outdoor Use

Indoor use only
Power

Input: 125V AC, 50/60 Hz
Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications

FCC
UL

D-Link DCH-S150/E Home Wi-Fi Motion Sensor

Domácnost, která reaguje na pohyb.
Wi-Fi sensor pohybu, který vás upozorní, pokud se ve vaší domácnosti něco děje. Kombinujte ho se Smart Plugs(chytrou zásuvkou) a Home Monitors (domácí kamerou) a vytvořte tak jedinečné Smart Home řešení pro vaši chytrou domácnost.

Pokud se doma něco pohne, budete o tom vědět.
Dostanete Push- nebo textovou notifikaci na svůj Smartphone, pokud bude ve vaší domácnosti zaznamenán pohyb. Ale Motion Sensor umí ještě více!

Zařízení, která na vás reagují? Je to zázrak?
Představte si, že se vracíte domů: světla se rozsvítí a vaše oblíbená hudba začne hrát. Kouzlo? Ne, pokud spojíte Wi-Fi Motion Sensor a Smart Plug (chytrou zásuvku), bude vaše domácnost skutečně dělat zázraky.

Váš dům ve vašich rukách
Něco se doma pohybuje? Pravděpodobně je to jen váš pes nebo pošťák u vašich dveří, ale měli byste si být jisti. Váš Wi-Fi Motion Sensor spolupracuje s vaším mydlink™ Home Monitor, takže pohyb je vždy zaznamenán a vy se o tom můžete přesvědčit na vašem Smartphonu.

SPECIFIKACE
General

Device Interfaces
802.11 b/g/n wireless
WPS button
Reset button
LED

Status/WPS
Standards

IEEE 802.11n/b/g
Wireless Frequency Range

2.4 GHz to 2.4835 GHz
PIR Sensor

8 metres (100° horizontal / 80° vertical) detection range
Antennas

One internal antenna
Plug Type

Region dependent
FUNCTIONALITY
Security

Wi-Fi Protected Access (WPA/WPA2)
Wi-Fi Protected Setup (WPS)
Advanced Features

mydlink™ Home app support
Device Management

mydlink™ Home app
Physical
Dimensions

58 x 54 x 43.5 mm
Weight

80 grams
Power

Input: 220 to 240 V AC, 50/60 Hz
Temperature

Operating: 0 to 40 °C
Storage: -20 to 65 °C
Humidity

Operating: 10% to 90% non-condensing
Storage: 5% to 95% non-condensing
Certifications

FCC
CE
UL
CE/LVD
1. mydlink™ Home app is available for iPod touch, iPhone and iPad devices using iOS version 6.0 or later, and Android devices using Android version 4.0 or later.
