D-Link DCH-107KT Home Security Starter Kit

D-Link mydlink Home Security Starter Kit

Starter Kit package with simple setup process.

PŘEHLED

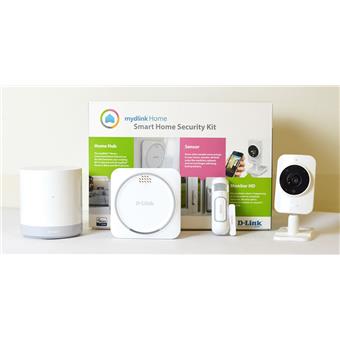

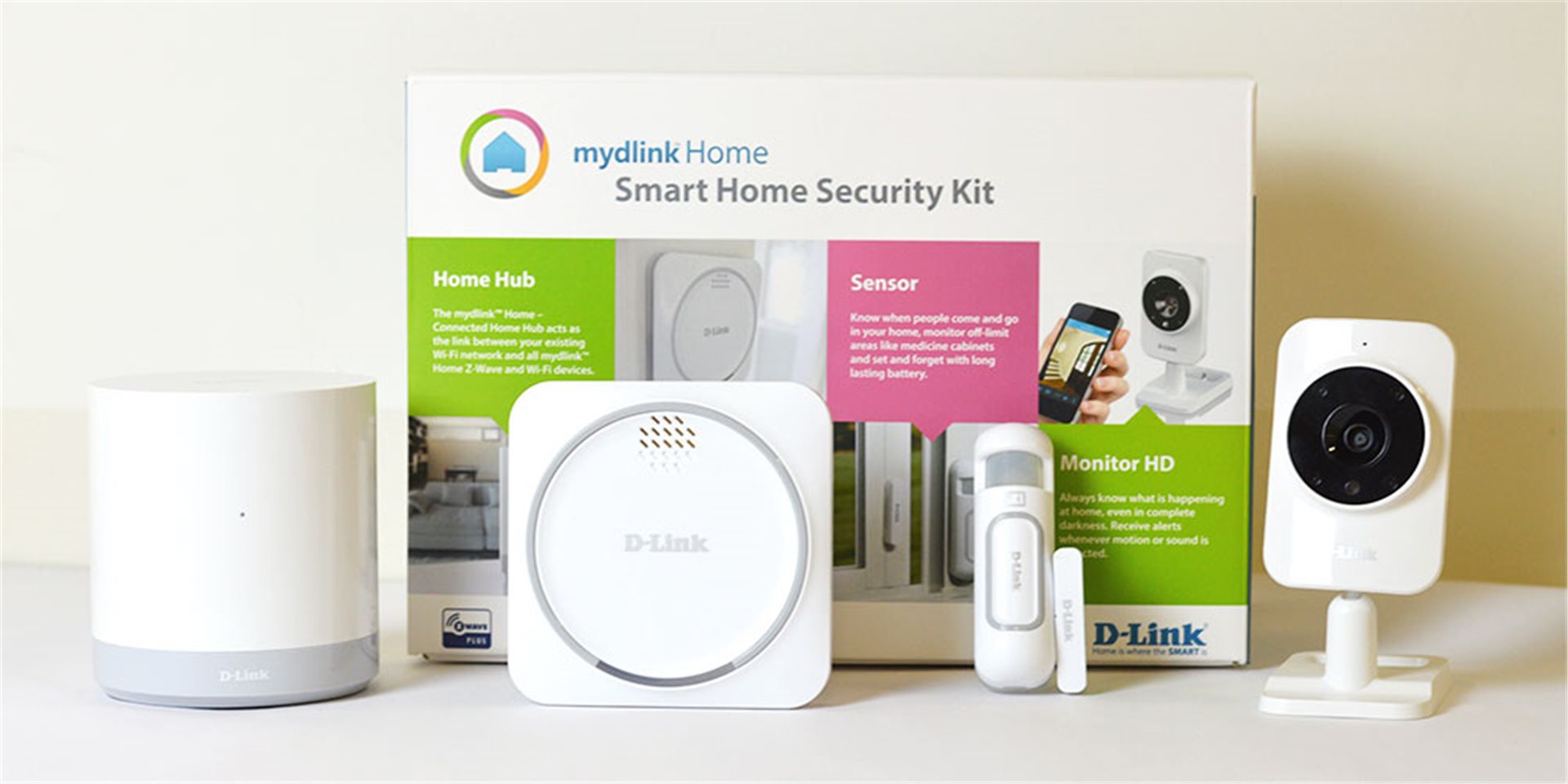

This convenient security bundle lets you protect and monitor your home from anywhere. The Smart Home Security Kit includes a Connected Home Hub a Door & Window Sensor, a Siren with optional battery back-up1 and a Monitor HD. These devices talk to each other and with the mydlink Home smartphone and tablet app1 you can decide what it is you would like them to do.

OBSAH BALENÍ

• 1 x DCH-G020 mydlink Home Z-Wave Connected Home Hub
• 1 x DCS-935L mydlink Home Monitor HD
• 1 x DCH-Z110 mydlink Home Z-Wave Door/ Window Sensor
• 1 x DCH-Z510 mydlink Home Z-Wave Siren

TECHNICKÁ SPECIFIKACE

Network Protocols

• ARP, ICMP, TCP/IP, IPv4 and IPv6, HNAP, DHCP client, NTP client, Bonjour. 802.11b/g/n, Z-Wave v6.02 or above

Wireless

• Z-Wave: 868.40 MHz
• Wi-Fi: 2.4 GHz
• AP mode

Ports

• USB 2.0
• 2 x 10/100 Ethernet

Buttons

• WPS & Z-Wave pairing / unpairing
• Reset

LED

• Status

Physical
Dimensions

• 100 x 100 x 110 mm

Weight

• 180 g

Power

• 5 V / 2 A

Temperature

• Operating: 0 to 40 °C
• Storage: -20 to 70 °C

Humidity

• Operating: 20% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC, CE, Wi-Fi, Z-Wave Plus

Door & Window Sensor (DCH-Z110)
Network Protocols

• Z-Wave v6.02 or above

Wireless

• Z-Wave: 868.40 MHz

Buttons

• Tamper switch & pairing/unpairing button

LED

• Status

Physical
Dimensions

• Sensor: 96 x 28 x 23 mm
• Magnet: 50 x 10 x 12 mm

Weight

• 34.1 g

Power

• Included 3 V battery (CR123A)

Temperature

• Operating: -10 to 40 °C
• Storage: -20 to 70 °C

Humidity

• Operating: 20% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC, Z-Wave Plus

Siren with optional battery back-up (DCH-Z510)
Network Protocols

• Z-Wave v6.02 or above

Wireless

• Z-Wave: 868.40 MHz

Buttons

• Tamper switch & pairing / unpairing / reset button

LED

• Status

Siren

• 110 dB
• 6 available sounds

Physical
Dimensions

• 110 x 110 x 19 mm

Weight

• 125 g

Power

• 5 V / 1.2 A
• Optional 1150 mAh lithium battery support (BL-5C)1

Temperature

• Operating: -10 to 40 °C
• Storage: -20 to 70 °C

Humidity

• Operating: 20% to 90% non-condensing
• Storage: 5% to 95% non-condensing

Certifications

• FCC, Z-Wave Plus

DCS-935L Monitor HD
Camera Hardware Profile

• 1/4” Megapixel progressive CMOS sensor
• 5 metre IR illumination distance
• Minimum illumination: 0 lux with IR LEDs on
• Built-in Infrared-Cut Removable (ICR) Filter module
• 4X digital zoom
• Lens: Fixed length 2.38 mm
• Aperture: F2.4
• Angle of view:
• (H) 78.44°
• (V) 47.9°
• (D) 85.98°
• Minimum object distance: 434 mm
• Exposure Time: 1/7.5 to 1/24,000 sec.
• Built-in microphone

Image Features

• Time stamp and text overlays
• Configurable motion detection windows

Video Compression

• Simultaneous H.264/MJPEG format compression
• JPEG for still images

Video Resolution

• 1280 x 720 at frame rates up to 30 fps

Audio Compression

• AAC
• G.711

Connectivity

• 802.11b/g/n/ac wireless with WEP/WPA/WPA2 encryption

Advanced Features

• Event Management
• Motion detection
• Sound detection

General
Dimensions

• 58.0 x 84.5 x 124.9 mm

Weight

• 160.0 g

Power

• 5 V DC 1.2 A, 50/60 Hz

Power Consumption

• 3.5 watts maximum

Temperature

• Operating: 0 to 40 °C
• Storage: -20 to 70°C

Humidity

• Operating: 20% to 80% non-condensing
• Storage: 20% to 80% non-condensing

Certifications

• CE
• CE LVD
• FCC Class B
• C-Tick
